⚠️ Open · noisy fan

Equipment page · Ventilation / fan

Belaco BLEF-30 floor fan

A fan at Bunk Nottingham — Stoney Street was reported making a sound or screech on 28 August 2026. The follow-up rating-label photo confirms the exact model and electrical rating.

Start checksEngineer handover
Venue
Bunk Nottingham — Stoney Street
Location
Fan position / room to confirm
Make / model
Belaco BLEF-30 · 12-inch floor fan
Rating
AC 220–240 V · 50 Hz · 80 W
Serial / asset tag
Not shown on supplied label
Observed symptom
Screeching / abnormal operating noise
Status
Open · inspect safely

Search this equipment page

Find bearing, blade, guard, dust, vibration, or noise checks

Issue brief · 28 August 2026

Abnormal sound / screech

Video evidence confirms the fan runs and appears to have a repeating high-pitched mechanical sound. Exact source needs a safe inspection with power isolated.

Open · diagnosis pendingBelaco fan making screeching noise

Evidence

  • Belaco badge visible on the centre hub.
  • Three-blade fan with wire guard and stand visible.
  • Rating label confirms Belaco BLEF-30, 12-inch floor fan, AC 220–240 V / 50 Hz / 80 W.
  • No serial or asset tag is shown on the label.
  • Sound source cannot be isolated from video alone.

Ranked checks

  • Look for blade touching the guard, rear cover, or loose debris.
  • Check dust on blades/guard and wobble from an unbalanced blade.
  • Check stand, guard clips, screws, tilt joint, and oscillation hardware for looseness.
  • With power isolated, turn the blade gently: roughness, side play, or scraping points to bearing/shaft trouble.

Do not lubricate blindly

Many modern fan motors are sealed or have no accessible oil point. Do not spray WD-40, water, or cleaner into the motor. Only lubricate if the exact Belaco manual identifies an oil point and specifies the lubricant.

Safe first-line troubleshooting

Find the noise without creating a hazard

1Switch off and unplug. Wait for the blades to stop; never put fingers through the guard while powered.
2Inspect the guard, blade, rear cover, cable, plug, stand, and nearby surfaces for impact, trapped debris, or contact marks.
3Clean only external accessible surfaces with a dry brush or vacuum. Do not bend the guard, wet the motor, or remove electrical covers.
4Check the blade turns freely by hand and has no side-to-side play. Scraping, stiffness, wobble, or a loose hub means stop using it and escalate.
5If visually sound, run briefly from a safe position on the lowest speed. Stop immediately for screeching, burning smell, smoke, sparking, overheating, or increasing vibration.

Sound diagnosis

What the noise suggests

  • High-pitched continuous squeal: dry/worn bearing or shaft alignment.
  • Periodic scrape/click: blade contacting guard, bent blade, or trapped object.
  • Rattle/buzz: loose guard, blade cap, stand, oscillation gear, or casing.
  • Low-frequency hum with slow start: motor, capacitor, or supply fault; engineer test required.
  • Increasing vibration: imbalance, bent blade, loose mount, or damaged bearing.

Escalate

Take out of service if…

  • Guard or blade is damaged, loose, or touching.
  • Cable, plug, switch, or casing is damaged.
  • There is smoke, burning smell, sparking, unusual heat, or repeated tripping.
  • Noise remains after external cleaning and checking for loose/contacting parts.
  • The fan is needed for cooling equipment and airflow failure could affect refrigeration or cellar conditions.

Engineer request: confirm exact model, motor/oscillation assembly, bearing condition, electrical safety, and whether repair or replacement is economical.

Video evidence

Belaco BLEF-30 at Stoney Street

The rating-label photo confirms the exact model and electrical rating. It is heavily dust-covered, supporting a careful external clean after isolation.

Belaco BLEF-30 three-blade metal floor fan at Bunk Nottingham Stoney Street
Extracted frame from supplied video · 28 August 2026.

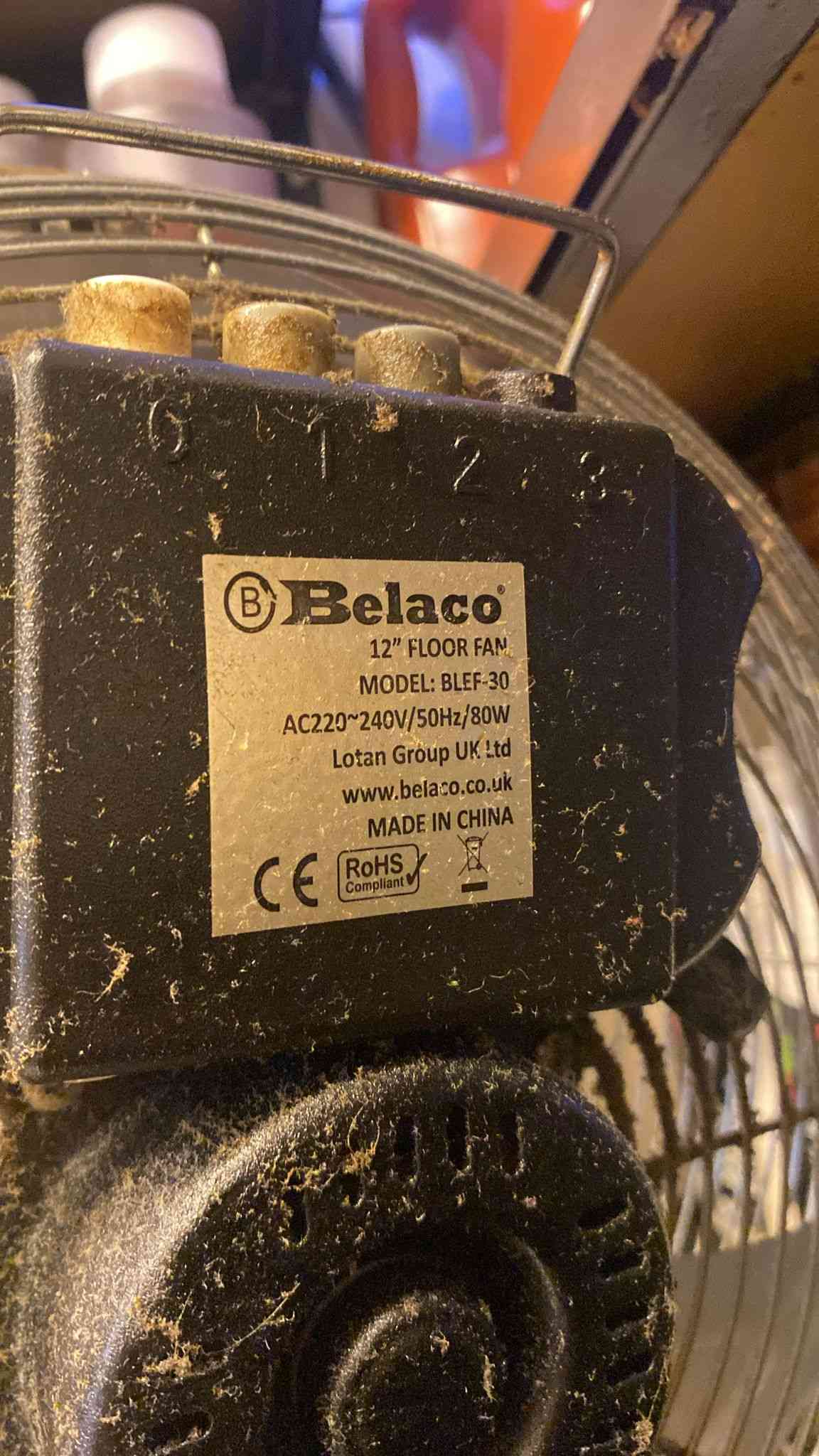

Belaco BLEF-30 rating label showing 220 to 240 volts, 50 hertz and 80 watts
Rating label: BLEF-30 · 12-inch floor fan · AC 220–240 V / 50 Hz / 80 W.
Supplied video: abnormal sound reported during operation.

Research sources

Reference material used

Engineer handover

Copy-and-paste details

Site details

Venue
Bunk Nottingham — Stoney Street
Equipment
Belaco BLEF-30 12-inch floor fan · AC 220–240 V / 50 Hz / 80 W
Issue
Screeching / abnormal operating noise
Evidence
Video supplied 28 August 2026
